·Description：

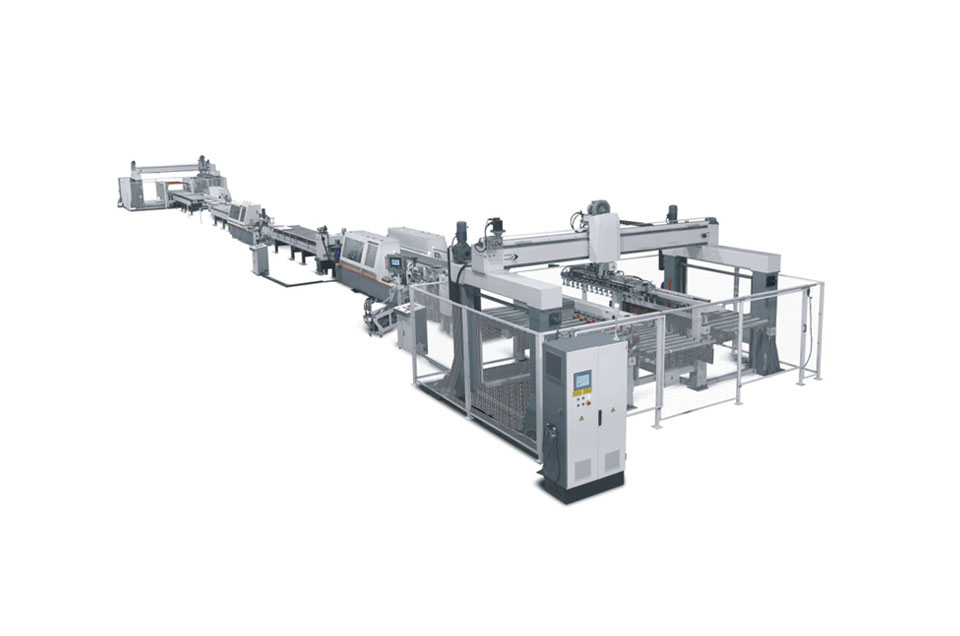

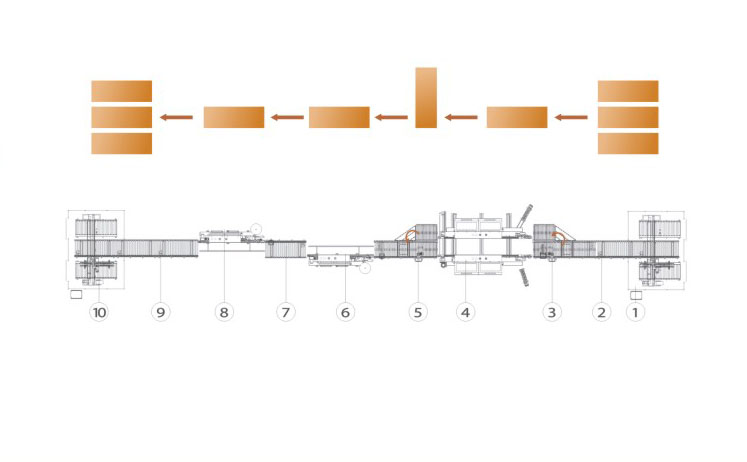

1. It's composed of high-speed gantry loader and stacker, 1 two-sided edge banding machine and 2 single-sided edge banding machines, which can complete four-sided edge banding at a time.
2. The two-sided edge banding machine is fast and stable, with automatic belt changing function.
3. Adopt the most advanced motion control system and Ethernet network to control the whole production line. The data can be edited on the control panel synchronously, the width, thickness and speed can be adjusted to improve the efficiency of 5 times.
·Specification：
| length of workpiece | 300-2400mm | |
| 工件长度 | ||
| width of workpiece | 300-1200mm | |
| 工件宽度 | ||
| thickness of workpiece | 10-60mm | |
| 工件厚度 | ||
| weight of workpiece | max 50kg | |
| 工件重量 | ||
| height of stacking | max 1300kg | |
| 堆垛高度 | ||
| loading/unloading speed | 7-9pcs/min | |
| 上料/下料速度 | ||
| speed of whole line | 22m/min | |
| 整线速度 | ||
| spacing | length of workpiece+600mm | |
| 间距 | 板件长度+600mm | |
