Intelligent Packing Solution for Customized Furniture

CNC Customized Cardboard Cutting Machine

·width of cardboard：800-1600mm/800-2500mm
·higher efficiency：4-6 pcs/min
·lower labor cost：only 3-4 operators
·better appearance
Product description: CNC Customized Cardboard Cutting Machine
INQUIRY EMAIL

·Description：

1.Intelligently select the suitable cardboard from the storage area for cutting , it can save manufacturing cost by reducing waste of cardboard.
2.With patented system of constant space indentation cutting：
·circular blades instead of general saw blades, life-span has been prolonged
·indentation cutting creates no dust, no need to equip with dust collector
·kerf generated by cutting corrugated paper is smooth
·the constant space avoids the abrasion between blades and all-steel base plate, it can prolong the life-span of blades 3.Blades for cutting cardboard：
3-1 Horizontal Blades
·axis of horizontal blade：1 piece
·horizontal blade：1 piece
·blade for cutting standard imaginary line indentation：1 piece

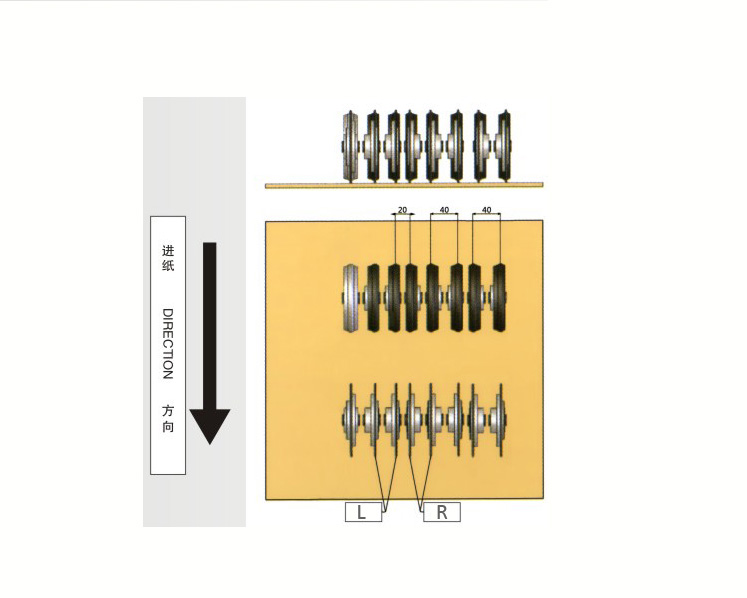

3-2 Vertical Blades
·axis of vertical blade：8 pieces
·vertical blade：8 piece
·blade for cutting standard imaginary line indentation：8 pieces

·Specification：

Model	KCCM-1600	KCCM-2500
型号
place of origin	Guangdong,China	Guangdong,China
产地	中国广东	中国广东
width of cardboard	800-1600mm	800-2500mm
纸板宽度
thickness of cardboard	3-5mm	3-5mm
工件厚度
Qty of cardboard stack	1-4	1-6
纸垛数量
feeding speed of cardboard	0-90m/min	0-90m/min
纸板进料速度
speed of horizontal cut	max 90m/min	max 90m/min
横切速度
efficiency	4-6pcs/min	4-6pcs/min
效率
length of carton	min 400mm	min 400mm
纸箱长度
width of carton	min 180mm	min 180mm
纸箱宽度
height of carton	min 30mm	min 30mm
纸箱高度
compressed air	6-8 bar	6-8 bar
压缩空气
total power	9.5kW	11.5kW
总功率
size	3000x2100x2000mm(main machine), 11000x2700x2000mm(with storage rack)	3000x3200x2300mm(main machine), 14000x3800x2300mm(with storage rack)
尺寸
weight	2300kg	3000kg
重量
