Sanding Machine

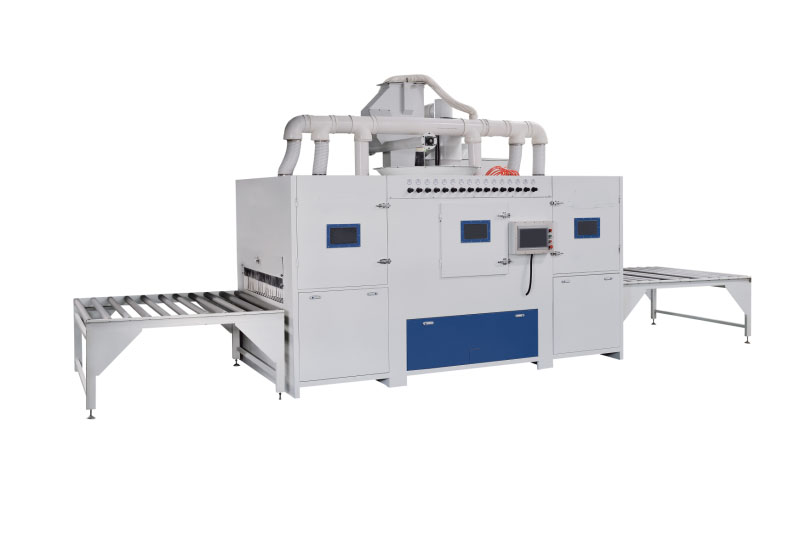

Full Automatic Sand Blasting Machine

·width of workpiece：max 1200mm
·total power：13.75kW(air compressor:55kW）
·overall dimension：4000x3000x3360mm
·sand type：white/brown/black corundum
Product description: Full Automatic Sand Blasting Machine
INQUIRY EMAIL

·Description：

1. Specially used for automatic sand blasting and grinding of special-shaped workpiece, such as wooden door, wood line, customized panel furniture,
bathroom cabinet, etc.
2. Working process: automatic feeding - conveying to infrared detection system - UV / PU primer sand blasting - DuPont line fine sanding
machine processing - double roller sisal sanding machine processing - electrostatic double-sided dust removal machine processing - unloading to the next process.
·Specification：

processing width	max 1200mm
加工宽度
thickness of workpiece	max 100mm
工件厚度
motion range	0-1500mm
行程范围
feeding speed	0-5m (adjustable)
输送速度
rack reciprocation	0-360°
枪架往复
QTY of spray gun	16 pcs
喷枪数量
sand type	white /brown/black corundum
砂粒种类	白/棕/黑刚玉
total power	13.75kW(air compressor:55kW)
总功率	13.75kW(空压机:55kW)
overall dimension	100kg
外形尺寸
