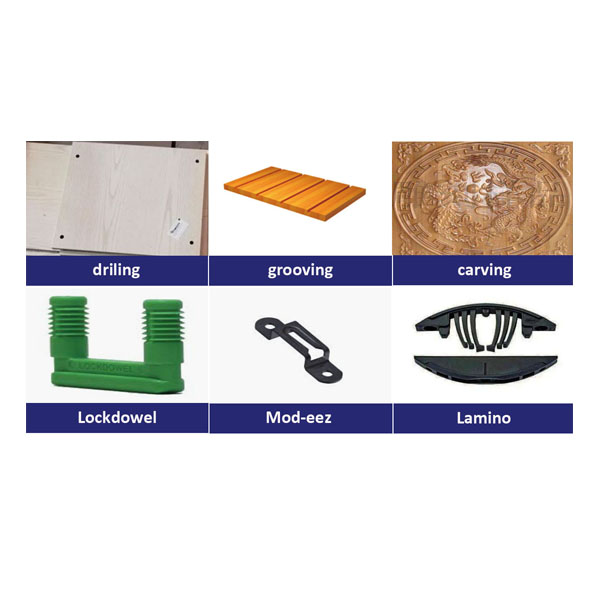

1.Suitable for drilling, milling, cutting, carving and routing of panel furniture, it can efficiently process the mounting holes required for the three-in-one and two-in-one connections of panel furniture, and the mounting grooves required for the invisible fasteners of Lamino, Mod-eez, Lockdowel, etc.
2. Using 9kw high-power air-cooled tool change spindle, suitable for long-time and high-speed cutting, carving and milling for cabinets.
3. With double-layer vacuum partition adsorption table to ensure processing the small plates without deviation.
4. Adopting thick-walled welding steel heavy duty gantry and lathe bed, the machine operates at high speed with low vibration, low noise and high stability, it can effectively avoid the problems of edge breakage and tool breakage in high-speed cutting.
|size of workpiece||max 1220mmx2440mm/2800mm/3000mm|
|processing speed||max 20m/min|
|repeated positioning accuracy||±0.05mm|
|transmission type||X/Y-axis rack,Z-axis guide screw|
|main spindle||9kWx1 air-cooled 18000RPM|
|tool magazine capacity||12月16日|
|working table type||double-layer vacuum partition adsorption table|
