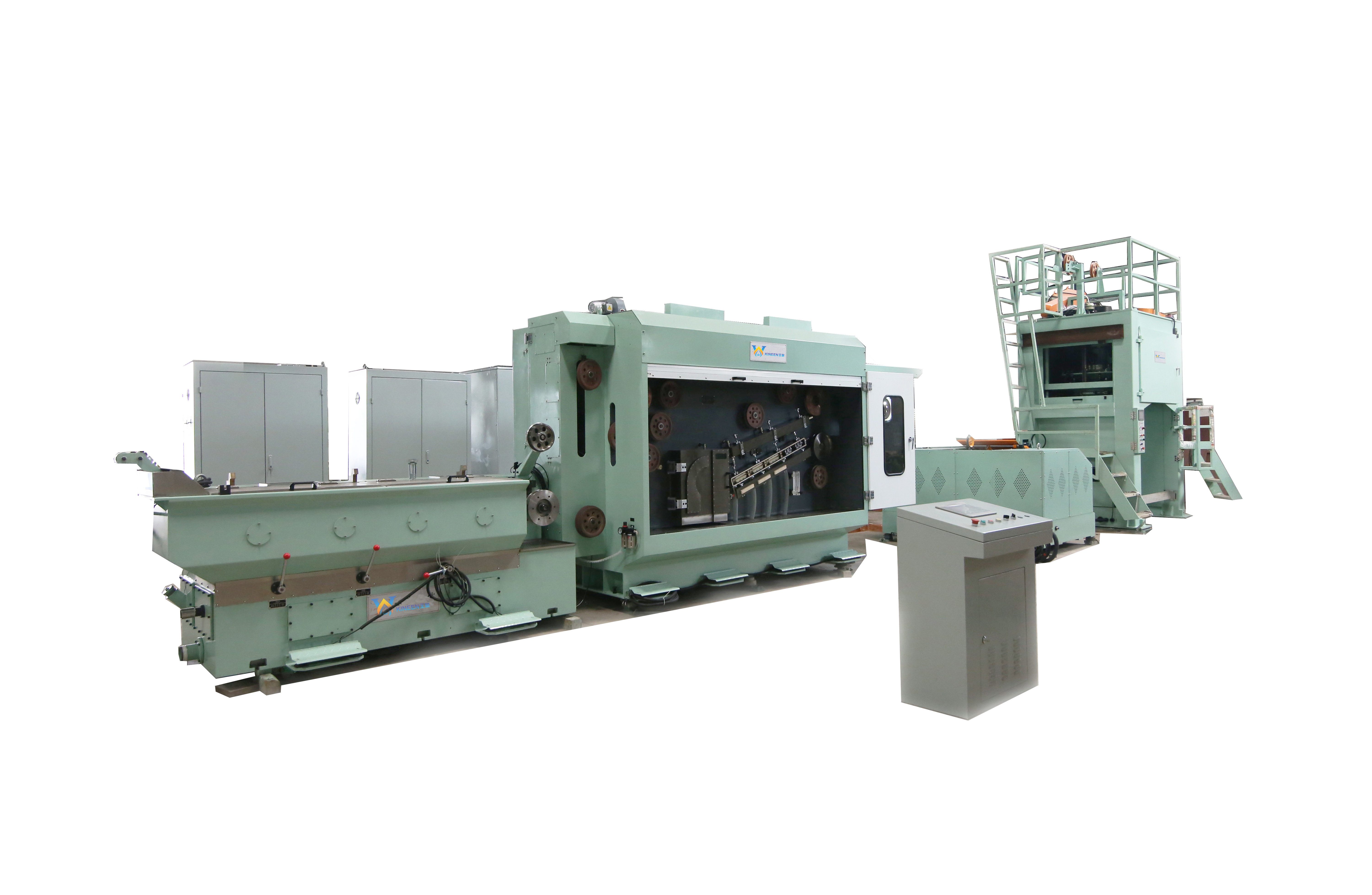

·Description：
1. The maximum mechanical speed can reach 2000m / min.
2. The coiler(wire dropping mechanism) had been improved based on Korean technology, laying arrangement of wire become more uniform and smooth.
3. Adopt domestic high-grade motors, quality-assured and more cost-effective.
·Specification：
| inlet wire | max ø4.2mm | |
| 进线 | ||
| outlet wire | ø0.32-2mm | |
| 出线 | ||
| speed | max 2000m/min | |
| 速度 | ||
| No. of Dies | max 17 | |
| 模具数 | ||
| dies size | ø25-32mm | |
| 模具尺寸 | ||
| mechanical elongation | 25/18.6% | |
| 机械延伸率 | ||
| drawing capstan Dia. | max φ250 | |
| 拉丝轮直径 | ||
| drawing motor power | AC45kW | |
| 拉丝电机功率 | ||
| standard spool | φ320φ360φ400 | |
| 标准盘尺寸 | ||
| traversing method | servo motor/ stepper motor + synchronous belt | |
| 排线方式 | 伺服电机/步进电机+同步皮带 | |
| wire material | copper, Al-alloys | |
| 生产线材 | 铜、铝合金 | |
| machine dimension | 2480x1080x1400mm | |
| 设备外形尺寸 | ||
| net weight | 3260kg | |
| 净重 | ||
