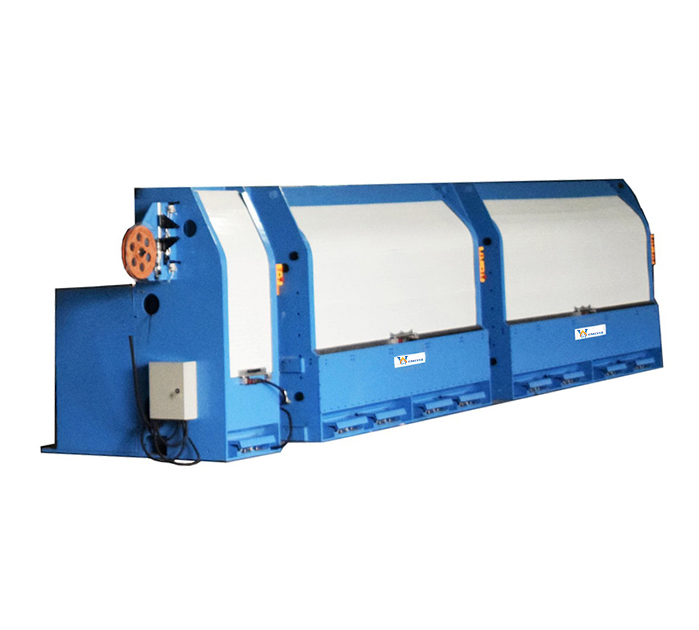

·Description：

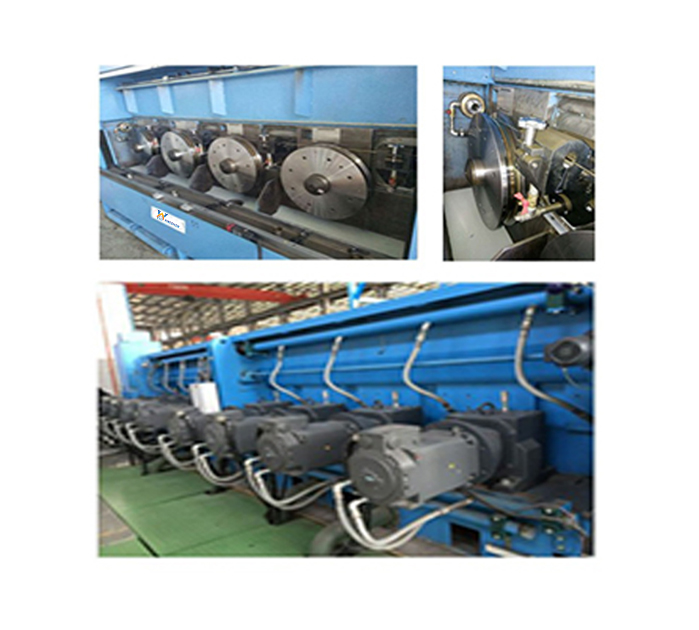

·Drawing part：
Each capstan is equipped with independent servo motor which imported from Siemens, speed error can be controlled within 1‰.
·Induction annealer (made in Germany)：
1.Heated by inductive coil, less abrasion and spark.
2.With speed tracking, multiple segment data collection ,which makes performance more steady.
·Specification：
| usage | available for rewinding up diamond steel wires | ||
| 用途 | 适用于复绕金刚线 | ||
| wire Dia. | φ50-700μm | ||
| 线径 | |||
| tension range | 4-30N | ||
| 张力范围 | |||
| unwinding angle | ＞82°and＜90° | ||
| 放线角度 | |||
| unwinding motor | 4kW converter motor(Siemens) | ||
| 放线电机 | 4kW变频电机（西门子） | ||
| rewinding motor | 4kW converter motor(Siemens) | ||
| 收线电机 | 4kW变频电机（西门子） | ||
| traversing motor | 1kw V90 servo motor(Siemens) | ||
| 排线电机 | 1kw V90 伺服电机（西门子） | ||
| encoder | TRD-2TH500BF | ||
| 编码器 | |||
| potentiometer | HCP-50 | ||
| 电位器 | |||
| unwinding bobbin A A放线盘 | OD: φ315mm | ||
| Width: 345mm | |||
| Hole: φ150mm | |||
| rewinding bobbin B1 B1收线盘 | OD: φ240mm | ||
| Width: 214mm | |||
| Hole: φ182.5mm | |||
| Rewinding Bobbin B2 B2收线盘 | OD: φ255mm | ||
| Width: 214mm | |||
| Hole: φ150mm | |||
| overall dimension | 3230x1880x2340mm | ||
| 外观尺寸 | |||
| net weight | 2978kg | ||
| 净重 | |||
| color | Pantone code: 11-0601TPX, Bright White | ||
| 颜色 | |||
