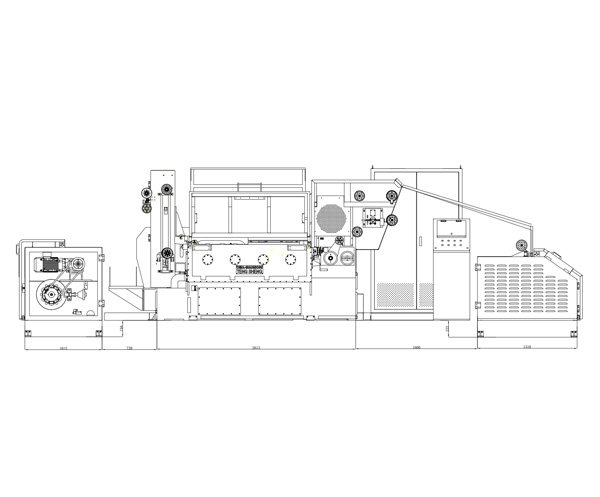

·Description：
1.This high-standard offline fine wire drawing machine was specially customized by our big client which is top-ranking in the world.
2.If the Inlet Wire Dia. less thanφ1.25 mm, the Outlet Wire Dia. should be decreased accordingly to keep the max speed, otherwise the wire speed will be slower than 1800m/min.
3.Only this type of bobbin-Ф630xФ335xФ127x400mm is available for take-up.
4.All the drawing and take-up motors are made by Siemens.
·Specification：
| inlet wire | max ø1.25mm | |
| 进线 | ||
| outlet wire | ø0.4mm | |
| 出线 | ||
| speed | max1800 m/min | |
| 速度 | ||
| mechanical reduction | interior：15% | |
| 机械减面率 | outlet：15% | |
| power supply | three-phase, 380V, 50Hz | |
| 电源 | ||
| air supply | 0.5 MPa | |
| 气源 | ||
| pay-off bobbin size | Ф630xФ335xФ127x400mm | |
| 放线线盘尺寸 | ||
| pay-off bobbin clamped method | centred and locked | |
| 放线线盘夹紧方式 | 两中心顶紧并防转动 | |
| pay-off bobbin loaded and unloaded method | Loaded：manually rolled onto the tray then automatically loaded by the tray. Unloaded：automatically unloaded by the tray then manually rolled off the tray. | |
| 放线线盘装卸方式 | 手动将线盘滚动到托盘上，再由托盘自动送入。由托盘自动送出，再手动将线盘从托盘滚下。 | |
| pay-off motor | 3KW, 1450rpm, I=9.7, gear motor, Siemens | |
| 放线电机 | 3KW, 1450rpm, I=9.7,齿轮电机，西门子 | |
| dies Qty | 13 pcs（8 pcs for spare） | |
| 模具数量 | 13个（空出8个） | |

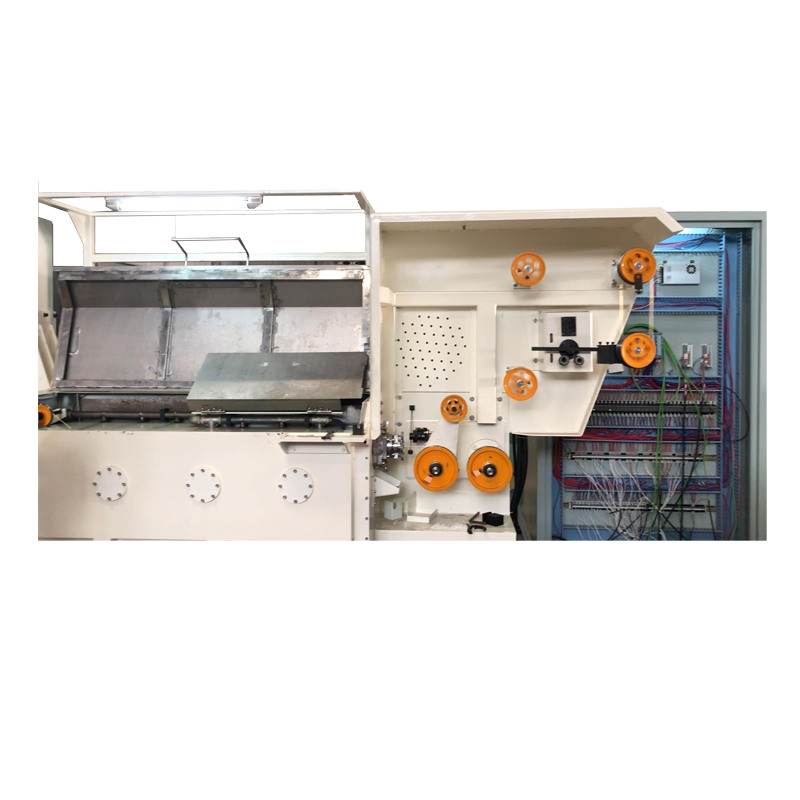

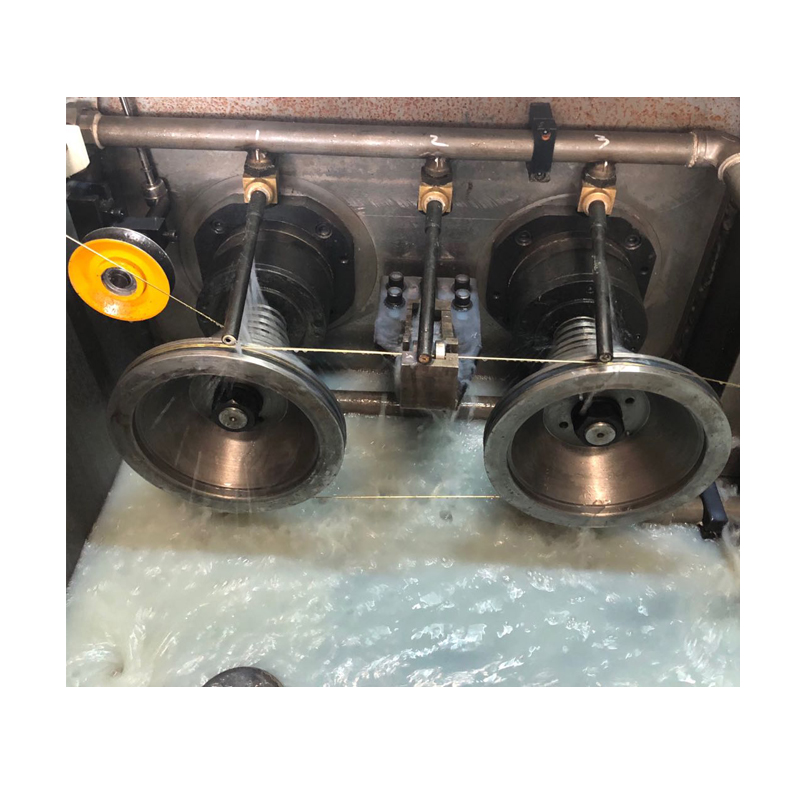

| drawing method | full immersed, slip drawing, horizontal 6 bearings | |
| 拉丝方式 | 全浸式，滑动拉伸，水平6轴 | |
| capstan | interior：2sets, 4pcs/set, outlet：1set, 2pcs/set | |
| 拉丝轮 | ||
| drawing motor | 22KW, 1450rpm | |
| 拉丝电机 | ||
| driving method | motor to machine：V belt drive,machine interior：chain drive, machine interior to outlet: flat belt | |
| 传动方式 | 电机到拉丝机：V带传动，拉丝机内部：链传动，拉丝机内部到出口部分：平带传动 | |
| speed control method | speed preset and feedback from tachometer wheel | |
| 速度控制方式 | 速度预设和测速轮反馈 | |
| take-up bobbin size | Ф630xФ335xФ127x400mm | |
| 收线线盘尺寸 | ||
| take-up bobbin clamped method | centred and locked | |
| 收线线盘夹紧方式 | 两中心顶紧并防转动 | |
| traversing method | traversing forward and backward, drove by servo motor | |
| 排线方式 | 伺服驱动丝杠正反排线 | |
| take-up control method | balanced tension control | |
| 收线控制方式 | 平衡张力控制 | |
| take-up bobbin loaded and unloaded method | Loaded：manually rolled onto the tray then automatically loaded by the tray. Unloaded：automatically unloaded by the tray then manually rolled off the tray. | |
| 收线线盘装卸方式 | 手动将线盘滚动到托盘上,再由托盘自动送入;由托盘自动送出,再手动将线盘从托盘滚下 | |
| take-up motor | 18.5KW, 1450rpm | |
| 收线电机 | ||
