·Description：
1.Equipped with hydraulic lifting tables at the front and rear, can realize automatic loading and unloading, the max load is 3T,and the max lifting height is 1300mm.
2.It’s flexible to meet various of requirement by combining with different multiple blade saws（the model is optional).
3.With automatic scraping machine which controlled by PLC, automatically loading and scraping at a time, it can save the carrying workload of three workers.
4.The rear hydraulic lifting table can realize automatic collecting after unloading by optical sensor detection, it can save the carrying workload of two workers.

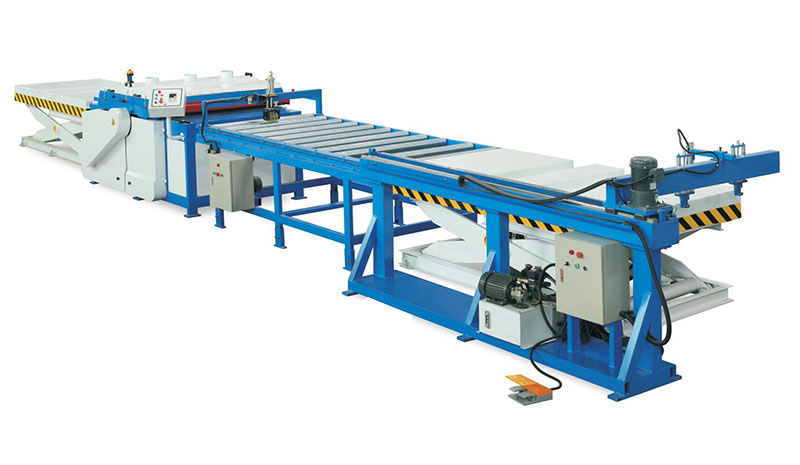

5.The production line can efficiently finish the whole process flow of loading, scraping, feeding, cutting, unloading, collecting.
·Specification：
| components | multiple blade saw(models is optional)x1, automatic scraping machinex1, front hydraulic lifting tablex1, feederx1, rear hydraulic lifting tablex1, roller conveyor | ||
| 组成 | 多片锯一台(可选其他机型),自动刮板机一台,前液压升降平台一台,后液压升降平台一台,自动连接线条,送料机一台 | ||
| place of origin | Guangdong,China | ||
| 产地 | 中国广东 | ||
| width of workpiece | max:1220mm | ||
| 工件宽度 | |||
| thickness of workpiece | 5-60mm | ||
| 工件厚度 | |||
| power of spindle motor | 11-55kW(optional) | ||
| 主轴电机功率 | |||
| power of feeding motor | 1.5-3kW(optional) | ||
| 送料电机功率 | |||
| feeding speed | 0-17m/min(adjustable) | ||
| 送料速度 | |||
| load of lifting table | max 3T | ||
| 升降台承重 | |||
| power source | 380V, 50Hz,3P | ||
| 电源 | |||
| CE certificate | √ | ||
| CE认证 | |||
