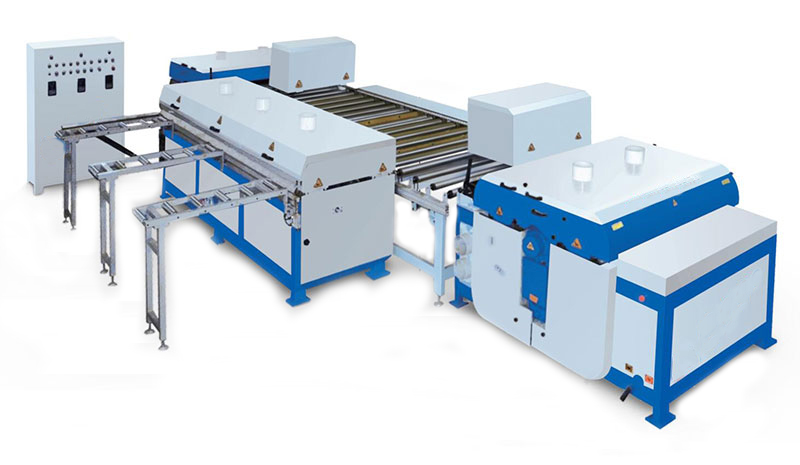

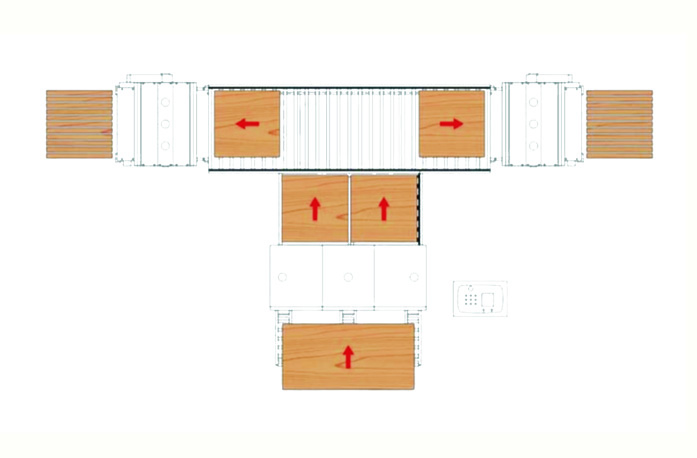

1.It can vertically cut a big wood board (2440x1220mm) into two or three pieces, transfer the boards by efficient conveyor, and then horizontally cut the boards respectively on the left and right.
2.It can realize uninterruptedly feeding, is the ideal choice for mass production of panel furniture, door and floor.
3.Feeding by wear-proof rollers can ensure the materials fed more smoothly, life-span of rollers effectively prolong after hardness processing of roller surface.
4.The machine controlled by humanization operation interface, it can greatly save you both time and labour.
5.The whole machine will be automatically power off in case the dust cover is opened during machine’s running, to better protect for the operators.
|unit||vertical sawing unit||horizontal sawing unit|
|place of origin||
|width of workpiece||max:1270mm||max:2600mm|
|thickness of workpiece||max:35, min:5mm||max:35, min:5mm|
|qty of feeding roller||6sets/12pcs||4sets/8pcs|
|power source||380V, 50Hz,3P||380V, 50Hz,3P|
|other 其他||1.with a main spindle at lower part which can be manually lifting, with enclosed protective cover||1.three pieces of blade separately installed on the spindle, with enclosed protective cover|
|2.with double anti-rebound protective device(patent design)||2.overall length of feeding unit is 4m, with variable-frequency speed regulator, full aluminum alloy frame|
|3.with a group of upper pinch rollers above the spindle||3.enhanced motor tray|
