Sawing Machine

  • Sliding Table Saw Series

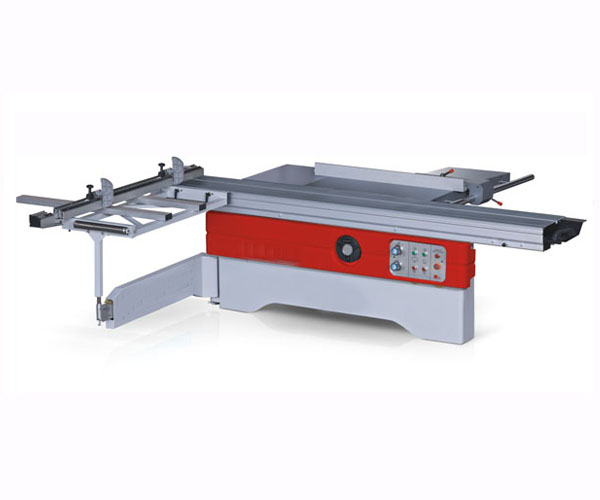

Sliding Table Saw Series

Sliding Table Saw Series

  • ·width of workpiece:max 1250mm
  • ·length of workpiece:max 2800/3000/3200mm
  • ·thickness of workpiece:max 80mm
  • ·power source:380V, 50Hz,3P
  • Product description: Sliding Table Saw Series
  • INQUIRY   EMAIL

·Description:

1.Available for processing MDF,chipboard,artificial board,acrylic,solid wood,etc.
2.The elevation and rotation of saw blades can be electrically adjusted, easy and fast to operate.
3.Using cylindrical steel guide rail,with higher hardness and wear resistance.
4.Digital display device for angle rotation, clear and convenient.

·Specification:

model KSTS6128 KSTS6130 KSTS6132
型号
place of origin Guangdong,China Guangdong,China Guangdong,China
产地 中国广东 中国广东 中国广东
width of workpiece max:1250mm max:1250mm max:1250mm
工件宽度
length of workpiece max:2800mm max:3000mm max:3200mm
工件长度
thickness of workpiece max:80mm max:80mm max:80mm
工件厚度
main saw blade dia. φ305mmxφ30mm φ305mmxφ30mm φ305mmxφ30mm
主锯片直径
grooving saw blade dia. φ120mmxφ20mm φ120mmxφ20mm φ120mmxφ20mm
槽锯片直径
main saw spindle rpm 4000/5000 r/min 4000/5000 r/min 4000/5000 r/min
主锯轴转速
grooving saw spindle rpm 9000r/min 9000r/min 9000r/min
槽锯轴转速
power of main saw spindle 4/5.5kW 4/5.5kW 4/5.5kW
主锯轴电机功率
power of grooving saw spindle 0.75kW 0.75kW 0.75kW
槽锯轴电机功率
dust collector inlet dia. φ100mmx1 φ100mmx1 φ100mmx1
吸尘口直径
overall dimension 2950x3000x1000 mm 3150x3000x1000 mm 3350x3000x1000 mm
外形尺寸
weight 750kg 800kg 900kg
重量
power source 380V, 50Hz,3P 380V, 50Hz,3P 380V, 50Hz,3P
电源
