·Description：

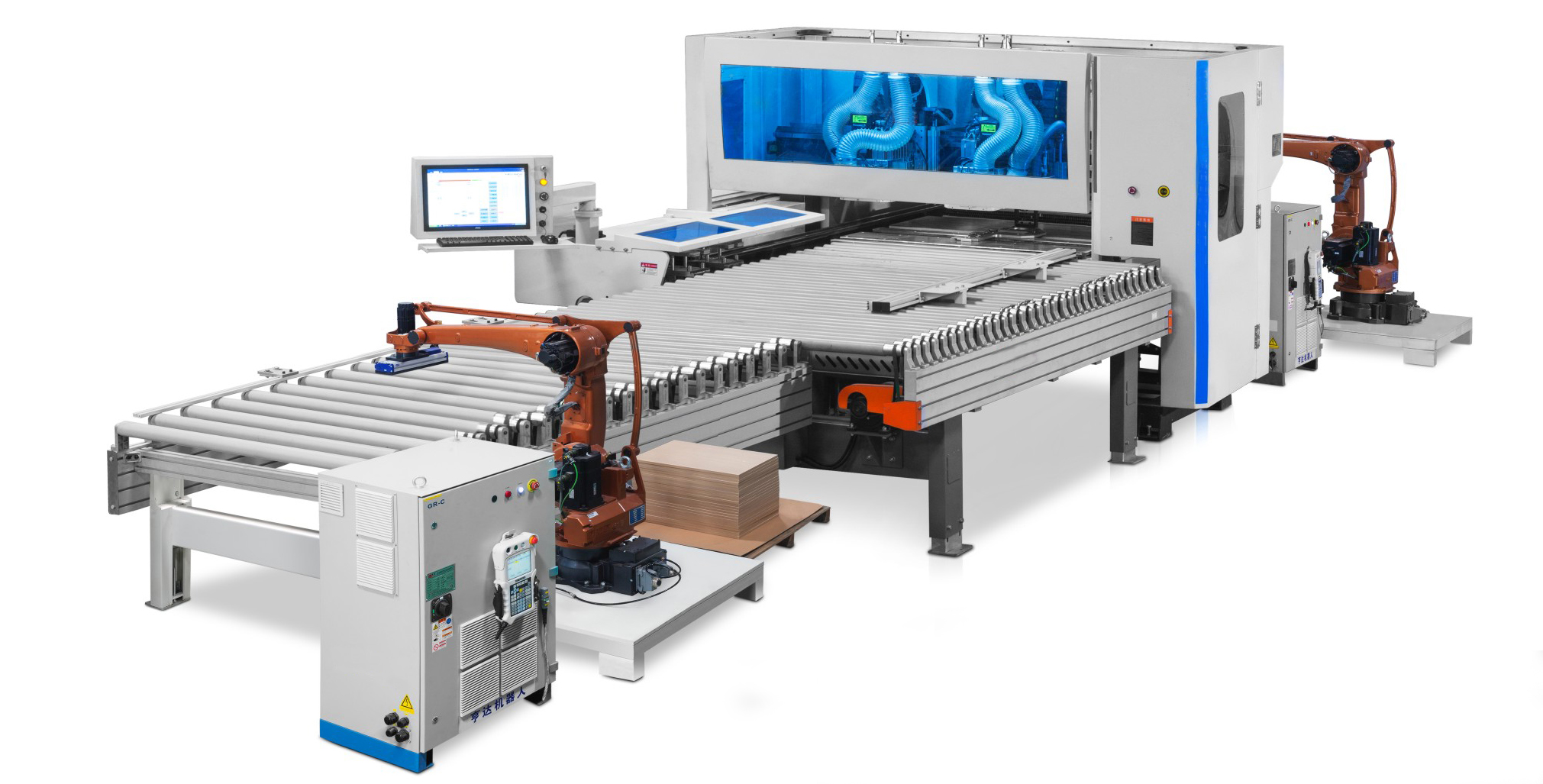

1.Equipped with robot arms,which can realize full automatic loading and unloading workpieces.
2.It can greatly save labor load of operators and increase production efficiency at the same time, what’s more, it can avoid safety accident.
·Specification：
| Model | KDMX7LR-W1250 (1 drilling unit) | KDMX7LR-W1250S (2 drilling units) | ||
| 型号 | ||||
| place of origin | Guangdong,China | Guangdong,China | ||
| 产地 | 中国广东 | 中国广东 | ||
|
processing size： 加工尺寸范围： |
||||
| width of workpiece | 80-1250mm | 80-1250mm | ||
| 工件宽度 | ||||
| thickness of workpiece | 9-50mm | 9-50mm | ||
| 工件厚度 | ||||
| length of workpiece | 300-2500mm | 300-2500mm | ||
| 工件长度 | ||||
|
max positioning speed： 最快定位速度： |
||||
| XU axis | 145m/min | 145m/min | ||
| XU轴 | ||||
| YV axis | 80m/min | 80m/min | ||
| YV轴 | ||||
| ZW axis | 30m/min | 30m/min | ||
| ZW轴 | ||||
| A axis | 60m/min | 60m/min | ||
| A轴 | ||||
|
drilling unit： 钻包装置 ： |
||||
| upper drilling unit | 12V+2*4HL | 12V+2*4HL,12V+2*4HR | ||
| 上钻包组 | ||||
| lower drilling unit | 7V+lower tray | 7V+lower tray | ||
| 下钻包组 | 7V+下托板 | 7V+下托板 | ||
| rotate speed of drilling spindle | 4500rpm | 4500rpm | ||
| 钻包轴转速 | ||||
|
milling unit： 铣槽装置 ： |
||||
| power of cutter spindle | 3.5kWx2 | 3.5kWx2 | ||
| 铣刀主轴功率 | ||||
| rotate speed of cutter spindle | 18000rpm | 18000rpm | ||
| 铣刀主轴转速 | ||||
|
others： 其他 ： |
||||
| front air bearing table | × | × | ||
| 前气浮工作台 | ||||
| feeding-out non-power roller table | × | × | ||
| 无动力出料滚筒台 | ||||
| automatic feed-in roller conveyor | √ | √ | ||
| 自动进料滚筒线 | ||||
| side feed-out roller conveyor with power | √ | √ | ||
| 动力侧出料滚筒线 | ||||
| robot arm for loading and unloading | √（50kgx2） | √（50kgx2） | ||
| 机械手上下料 | ||||
| dust collector | upper-150mm, lower-75mm | upper-150mmx2, lower-75mm | ||
| 吸尘口 | 上吸尘150mm，下吸尘75mm | 上吸尘150mm，下吸尘75mm | ||
| total power | 39.5kw | 43.5kw | ||
| 设备总功率 | ||||
| daily energy consumption | 11.5kW/h | 15.5kW/h | ||
| 日常使用耗能 | ||||
| overall size | 10500x4000x1950mm | 10500x4000x1950mm | ||
| 设备尺寸 | ||||
| net weight | 6500kg | 6700kg | ||
| 净重约 | ||||
