Sawing Machine

  • 800mm Multiple Blade Saw for Floor Grooving
  • 800mm Multiple Blade Saw for Floor Grooving
800mm Multiple Blade Saw for Floor Grooving800mm Multiple Blade Saw for Floor Grooving

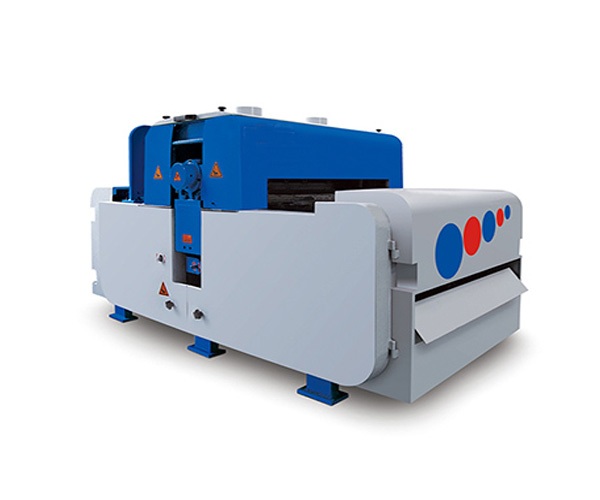

800mm Multiple Blade Saw for Floor Grooving

  • ·width of workpiece:max 800mm
  • ·thickness of workpiece:5-10mm
  • ·power source:380V, 50Hz,3P
  • ·with CE certificate
  • Product description: 800mm Multiple Blade Saw for Floor Grooving
  • INQUIRY   EMAIL

·Specification:

model  KMBS800-L
型号
place of origin  Guangdong,China
产地 中国广东
width of workpiece max:800mm
工件宽度
thickness of workpiece max:10, min:5mm
工件厚度
length of workpiece 20-50mm
工件长度
spindle dia. 90mm
主轴直径
spindle rpm 2600 r/min
主轴转速
saw blade dia.  180mm
锯片直径
power of spindle motor  7.5kW
主轴电机功率
power of feeding motor 1.5kW
送料电机功率
total power 9kW
总功率
feeding speed  0-12m/min
送料速度
feeding method chain belt feeding
送料方式 链带送料
dust collector outer dia.  150mm
排屑管外径
overall dimension 2400x1200x1250 mm
外形尺寸
weight 1000kg
重量
power source 380V, 50Hz,3P
电源
CE certificate
CE认证
