·Specification：

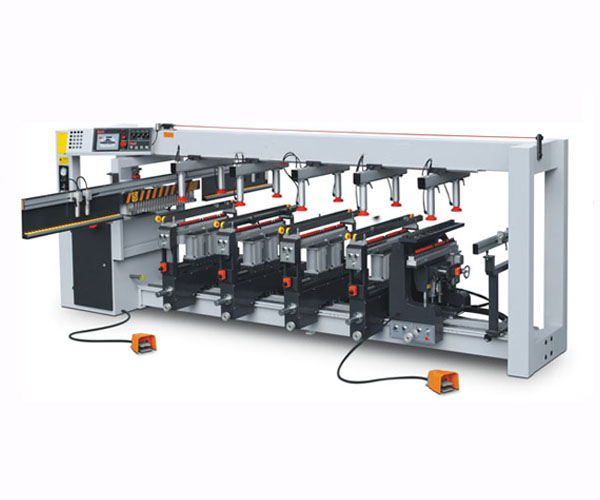

| name | Six Rows Multi-spindle Drilling Machine | Four Rows Multi-spindle Drilling Machine | ||||
| 名称 | 六排多轴钻 | 四排多轴钻 | ||||
| model | KDM7621S | KDM7621SR | KDM7421S | KDM7421SR | KDM7422T | KDM7422TR |
| 型号 | ||||||
| place of origin | Guangdong,China | Guangdong,China | Guangdong,China | Guangdong,China | Guangdong,China | Guangdong,China |
| 产地 | 中国广东 | 中国广东 | 中国广东 | 中国广东 | 中国广东 | 中国广东 |
| drilling Dia. | max φ13mm | max φ13mm | max φ13mm | max φ13mm | max φ13mm | max φ13mm |
| 钻孔直径 | ||||||
| drilling depth | max 60mm | max 60mm | max 60mm | max 60mm | max 60mm | max 60mm |
| 钻孔深度 | ||||||
| Qty of spindle | 6x21=126 | 6x21=126 | 4x21=84 | 4x21=84 | 4x22=88 | 4x22=88 |
| 钻轴数量 | ||||||
| distance between two spindles | 32mm | 32mm | 32mm | 32mm | 32mm | 32mm |
| 钻轴间距 | ||||||
| rotate speed of spindle | 2800r/min | 2800r/min | 2800r/min | 2800r/min | 2800r/min | 2800r/min |
| 钻轴转速 | ||||||
| total installed power | 9kW | 9kW | 6kW | 6kW | 9kW | 9kW |
| 安装总功率 | ||||||
| overall size | 4360x3000x1600mm | 4360x3000x1600mm | 3500x2500x1600mm | 3500x2500x1600mm | 3500x2500x1600mm | 3500x2500x1600mm |
| 设备尺寸 | ||||||
| net weight | 2600kg | 2700kg | 1420kg | 1450kg | 1450kg | 1480kg |
| 净重约 | ||||||
| power source | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P |
| 电源 | ||||||
| remark | single motor | single motor, the last row is rotatable | single motor | single motor, the last row is rotatable | two motors | two motors, the last row is rotatable |
| 备注 | 单电机 | 单电机,后排可翻转 | 单电机 | 单电机,后排可翻转 | 双电机 | 双电机,后排可翻转 |
| name | Three Rows Multi-spindle Drilling Machine | |||
| 名称 | 三排多轴钻 | |||
| model | KDM7321C | KDM7321S | KDM7322C | KDM7322T |
| 型号 | ||||
| place of origin | Guangdong,China | Guangdong,China | Guangdong,China | Guangdong,China |
| 产地 | 中国广东 | 中国广东 | 中国广东 | 中国广东 |
| drilling Dia. | max φ13mm | max φ13mm | max φ13mm | max φ13mm |
| 钻孔直径 | ||||
| drilling depth | max 60mm | max 60mm | max 60mm | max 60mm |
| 钻孔深度 | ||||
| Qty of spindle | 3x21=63 | 3x21=63 | 3x22=66 | 3x22=66 |
| 钻轴数量 | ||||
| distance between two spindles | 32mm | 32mm | 32mm | 32mm |
| 钻轴间距 | ||||
| rotate speed of spindle | 2800r/min | 2800r/min | 2800r/min | 2800r/min |
| 钻轴转速 | ||||
| total installed power | 4.5kW | 4.5kW | 7.5kW | 7.5kW |
| 安装总功率 | ||||
| overall size | 2750x2500x1600mm | 3500x2500x1600mm | 2750x2500x1600mm | 3500x2500x1600mm |
| 设备尺寸 | ||||
| net weight | 1050kg | 1230kg | 1100kg | 1260kg |
| 净重约 | ||||
| power source | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P | 380V, 50Hz,3P |
| 电源 | ||||
| remark | single motor, common type | single motor, heavy type | two motors, common type | two motors, heavy type |
| 备注 | 单电机,普通型 | 单电机,重型 | 双电机,普通型 | 双电机,重型 |
