·Specification：

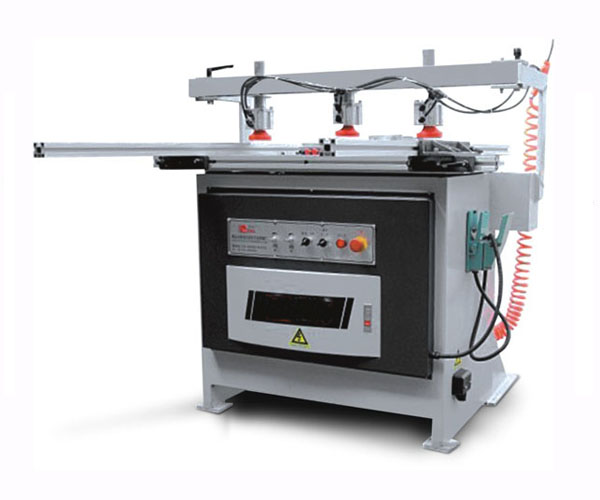

| name | Single Row Multi-spindle Drilling Machine | Two Rows Multi-spindle Drilling Machine | ||
| 名称 | 单排多轴钻 | 双排多轴钻 | ||
| model | KDM7121 | KDM7221 | ||
| 型号 | ||||
| place of origin | Guangdong,China | Guangdong,China | ||
| 产地 | 中国广东 | 中国广东 | ||
| drilling Dia. | max φ13mm | max φ13mm | ||
| 钻孔直径 | ||||
| drilling depth | max 60mm | max 60mm | ||
| 钻孔深度 | ||||
| Qty of spindle | 1x21=21 | 2x21=42 | ||
| 钻轴数量 | ||||
| distance between two spindles | 32mm | 32mm | ||
| 钻轴间距 | ||||
| rotate speed of spindle | 2800r/min | 2800r/min | ||
| 钻轴转速 | ||||
| total installed power | 1.5kW | 3kW | ||
| 安装总功率 | ||||
| overall size | 1250x700x1200mm | 1400x800x1200mm | ||
| 设备尺寸 | ||||
| net weight | 350kg | 510kg | ||
| 净重约 | ||||
| power source | 380V, 50Hz,3P | 380V, 50Hz,3P | ||
| 电源 | ||||
